ASCENT MIRROR TV

Expect no compromise.

The Mirror TV ASCENT raises the quality and usability of a Mirror TV to the highest degree.
A mirror with natural colors with the TV off; a 13˝ infotainment system; a stunning 32˝ display!


Lighting Design —


Mirror Width


Mirror Height

€2,990.00 *

incl. shipping costs

Available, ships within 14-21 days


Led lighting Easy to install Green product High brightness

ASCENT MIRROR TV

BEST OF BOTH WORLDS



With ASCENT™, ad notam raises the quality and efficiency of a Mirror TV to the highest degree.
ASCENT™ is the worldwide first Mirror TV with ad notams state of the art ASCENT™ technology, with which you can adjust your TV picture size with the touch of a button. To do that, we combined a fully-fledged vanity mirror and an all new 32’’ TV – in one device.

ASCENT MIRROR TV

EASY TO USE



Just connect to your WiFi and get started. Don´t miss your favorite TV show. News and weather forecast to be always up to date. Enjoy your favorite music, photo & video.

DISPLAY

HIGH BRIGHTNESS SCREEN



Unlike other TV Mirrors on the market, our products are equipped with powerful high brightness displays only. This way we can guarantee the best possible picture quality available on the Mirror TV market.

DISPLAY

ASCENT TECHNOLOGY



This breakthrough ASCENT™ technology lets you easily transform your TV picture inside the mirror from 13’’ to 32’’ and the other way round. With this exceeding technology, it is possible to watch a movie in brilliant full size mode, while one touch brings back the vanity mirror with a 13’’ picture.



PRESET POSITIONS



This 13’’ picture can be positioned wherever comfortable on the mirror with four preset positions available.



HIGH PICTURE QUALITY



With MAGIC MIRROR as part of this product, ad notam delivers the highest standard of picture quality possible when turned on, while, when turned off, the TV picture completely disappears behind the MAGIC MIRROR, leaving back nothing but the vanity mirror.

CONNECTIVITY

FACILE INTEGRATION



Enjoy the ad notam solution and rely on your trusted supplier. Via the HDMI inputs, you can connect whatever source you like, e.g. Apple TV, Android devices, etc.

The product comes with a pre-installed Amazon Fire TV, as part of the delivery scope. Just connect to your WiFi and get started.

SOUND

INVISIBLE LOUDSPEAKERS



The device is equipped with the most efficient and vibrant sound system for mirror surfaces. The speaker system is tailored for behind-glass installation and therefore completely invisible. Via the existing Audio inputs and outputs, you are free to connect other sources and speakers if needed.

CONTROL

IN-MIRROR TOUCH CONTROL



The easy to use Touch Control is seamlessly integrated into the mirror. Change the settings of your mirror at the touch of your fingers - no need to look for a light switch or a remote, simply direct your touch to the elegant touch keys on your mirror and enjoy the rare and elegant combination of style and comfort.

Several preset light levels that match your common lighting needs are available, such as

· 100 % Bright lighting to help you with Tasks
· 60 % Standard lighting to illuminate your room
· 20 % Soft lighting for a relaxing atmosphere

APPS

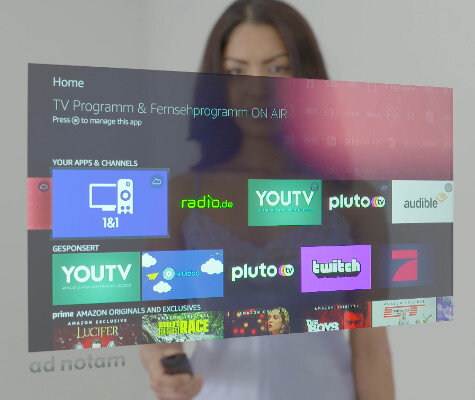

PRE-INSTALLED AMAZON FIRE TV WITH ALEXA VOICE REMOTE.



With the Amazon Fire TV you are ready to stream within minutes. Press the voice button on the Alexa Voice Remote and ask for your favorite TV Show, movie, live news or sporting event. An Amazon account is needed to operate the Fire TV.

Listen to music and podcasts through your favorite streaming services like Amazon Music, Spotify or Tune ln. Additional cost may apply.

Even Better with Prime.
Prime membership unlocks a world of entertainment on Prime Video, with exclusive and award-winning Amazon Originals, popular movies and TV, live events, sports, and more.

Home smart home.
Ask Alexa to view live camera feeds or control lights, thermostats, and other compatible smart home devices with your Alexa Voice Remote. For more information, please visit Amazon`s website.

TASK LIGHTING

LIGHTING COLOR



We give you confidence. With our luxury LED lights you can select the color that best matches the environment you’re preparing for – outdoors, indoors, or evening - in a range between 2700K to 6500K.

TASK LIGHTING

REAL COLORS



Light sources with a high CRI are desirable in color-critical applications such as your make up for a perfect look. We offer the highest possible industry standard for LEDs with a CRI value of more than 90.

TASK LIGHTING

LUMINANCE

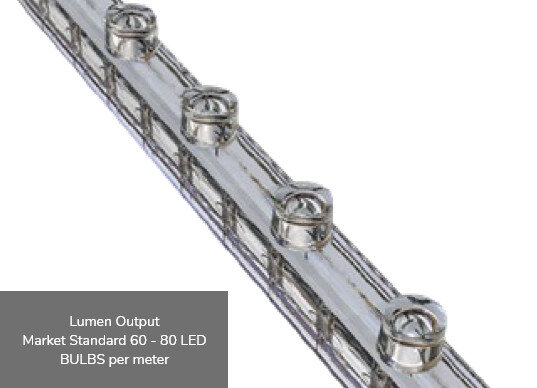

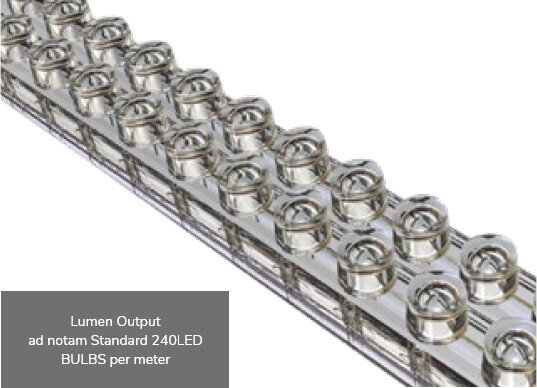

We offer the densest LED bulbs count per meter, resulting in the highest quality and brightest possible lighting to fulfill your tasks. And best of all: dim the illuminance according to your wishes with a fingertip via the touch keys inside the mirror .ad notam only uses LEDs that have an effective lifespan of at least 50,000 hours.

TASK LIGHTING

SERVICEABLE AND REPLACABLE LED BARS



For us at ad notam, the longevity of the products is important. For most LED products, the bulbs cannot be replaced. With our unique lighting design we offer the possibility to replace the bulbs, so that your investment pays off for many years.

TASK LIGHTING

DIRECT ILLUMINATION



Forget shadows and insufficient light on the lower face and neck; ad notam direct illumination places sufficient lights on the hairs, face and neck for an optimal make up. With our direct illumination technology you get the brightest possible lighting for your mirror. Change the settings of your mirror at the touch of your fingers - no need to look for a light switch or a remote, simply less power consumption for a defined Lumen Output.

*

The prices are non-binding recommendations from the manufacturer, excluding VAT. Subject to changes and errors.

Technical details

Materials

Silver Magic Mirror combined with anodized aluminium
Lighting pattern as stripes, integrated Display with Amazon Fire TV

Product Usage: For In-Door Use only
Operating Temperature: 5° to 40° Celcius
Humidity: 20 % - 80 %
HS Code: 85 28 59 31
Storage Temperature: -10° to 60° Celcius
Packaging type: Carton Box
Packaging dimensions:
W (Product Width + 120) x H 1020 x D 150 mm

Dimensions

Different sizes available
Width (W) in mm 1.200 | 1.400 | 1.600
Height (H) in mm 900
Depth (D) in mm 60

Weight

in kg for the basic model without upgrades
W 1200 | H 900: 19kg
W 1400 | H 900: 21kg
W 1600 | H 900: 24kg

Certification

UL 60950-1, CAN / CSA 22.2 - 60950-1, CB, FCC, EN-60950-1, EMC 55022, EN 6100-3-2, CE, IPX2

Thickness: 5 mm
Surface: Float
Tint: Silver
Reflection: 60 % +/- 5
Transmission of display image area: 40% +/- 5
Reflection of display image area: 60% +/- 5
Display area, when switched off: Invisible

Mounting: On Glass (MGS)
Display type: TFT Thin Film Transistor
Backlight / Lifetime: LED / 30.000 Hours
Screen Diagonale: 813 mm (32.0'')
Picture Format: 16:9
Physical Resolution: 1920 x 1080
Viewing Angle: Horizontal: Typical (Total) 178° (Left: 89° / Right: 89°) Vertical: Typical (Total) 178° (Up: 89° / Down: 89°)
Brightness: 550cd/m²
Contrast: Typical: 1200:1
Response Time: 8ms
Refresh Rate: 60 Hz
OSD Language: Deutsch, English, Español, Français, Italiano, Português, Chinese
Power: Voltage: DC 24V | Standby: 0.3W, 0.01A | Default: 43W, 1.79A | Maximum: 68W, 2.83A

Ascent Technology

Function: Image Switch
Full Screen: 32.0''
Small Screen: 13.3''
Number of preset positions: 4
Video Inputs

Component: 3x RCA terminal, green (Y), blue (Pb), red (Pr)
HDMI 1.3: 3x HDMI terminal

Supported resolutions: 720p, 1080i, 1080p
Supported resolutions: 480i, 480p, 576i, 576p, 720i, 720p, 1080i, 1080p

Audio Inputs

Line Audio Input: 2x RCA terminal, white (L), red (R)

Other Inputs

USB: 1x USB terminal
RS 232: 1x D-SUB 9 pin male terminal
IR Input (Infrared): 1x Mini Jack 3.5 mm

Audio Outputs

Speaker Output:

1x Phoenix Clip 4pin
2x 8W RMS @ 8 Ohms per channel

Line Audio Output: 1x Mini Jack 3.5 mm

Other Outputs

IR Output (Cable): 1x Mini Jack 3.5 mm
IR Output (LED): 1x Mini Jack 2.5 mm
DC Output 5V/12V: 1x Mini Jack 3.5 mm



max. 2.0A / only one active voltage

USB Media Player

Audio:
Picture:
Video:
Document

MP3, AAC, M4A, MP2
JPEG
MPEG-4, H.264, AVI, MP4, MOV, DIVX
DOC, PPT

Amazon Fire TV

via HDMI Stick
Full HD Quad-core 1,3 GHz
Remote Control with Alexa voice commands

Type: Invisible surface speaker, Stereo
Rated power: each 50W
Impedance: 8 Ohm
Sensitivity: 85 dB
Frequency Response: 60 - 20000 Hz

Type: LED, direct - double layer 240 LED/m
Luminance: 3.020 Lumen +/- 5%
Color: 2700 K - 6000 K, changeable (progressive)
Viewing Angle: 120°
Color Rendering Index (CRI): 90+
Dimmer: yes, 5 steps
Power: Voltage: DC 24V / Default: 36W, 1.5A

Technology: Capacitive
Number of Keys: 6

Functions

Key 1:

Screen ON/ OFF

Key 2:

Volume +

Key 3:

Volume -

Key 4:

Mute

Key 5:

Ascent Function (Full Screen, Small Screen, Off)

Key 6:

Short Press: Dim Lighting Intensity, 5-Levels
Long Press: Setting Light Temperature in a range from 2700K to 6000K
