LIGHTED MIRROR TV
MORE TIME FOR YOURSELF.
Take a proactive approach by finding relief from everyday tension. Don´t rush, enjoy a relaxing bath as you never did before!
Just connect to your WiFi and get started. Don´t miss your favorite TV show. News and weather forecast to be always up to date. Enjoy your favorite music, photo & video.
We have thought of everything, so that your bathroom mirror is always ready for use.
LEADING DESIGN
ELEGANCE
A new dimension of entertainment and design to take your bathroom experience to a whole new level. Stand out in the most elegant and sophisticated way.
NO COMPROMISE
ILLUMINATING

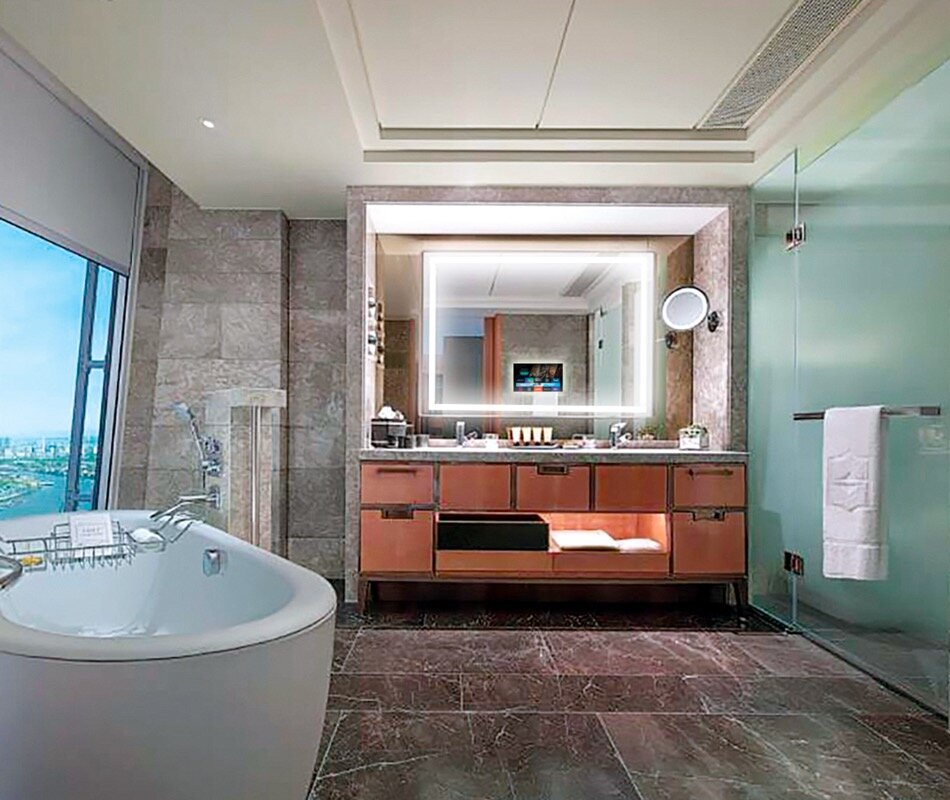

The Lighted Mirror TV is the perfect highlight for your bathroom. Mirror, illumination and entertainment combined as never before – get ready for the day ahead with a good mood!
DISPLAY
HIGH BRIGHTNESS SCREEN
Unlike other TV Mirros on the market, our products are equipped with powerful high brightness displays only. This way we can guarantee the best possible picture quality available on the Mirror TV market.
MIRROR
DIFFERENT MIRROR TYPES ACCORDING TO YOUR PREFERENCES.
MAGIC MIRROR
Total invisible, darkened mirror with good picture quality.
Allows the image area of the screen to appear in the “ON” position and completely vanish when turned “OFF”. Due to the tinted look, the brightness of the screen and the reflectivity of the mirror are minimally affected.
Mirror tint: Silver
Transmission of image area: 40 % +/- 5
Reflection of screen image area: 60 % +/- 5
Reflection of mirror surrounding screen image area: 60 % +/-5
CRYSTAL MIRROR
Not invisible, but best picture and mirror quality.
In the “ON” position, the crysral mirror technology allows almost 100% of the screen‘s brightness to display, permitting best picture quality with brilliant colours to transmit. When in the “OFF” position, the screen appears in the mirror as a black area. Crystal mirror technology offers the best natural reflection possible.
Mirror tint: Natural
Transmission of image area: 90 % +/- 5
Reflection of screen image area: 8 % +/- 5
Reflection of mirror surrounding screen image area: 95 % +/-5
CONNECTIVITY
FACILE INTEGRATION
Enjoy the ad notam solution and rely on your trusted supplier. Via the HDMI inputs, you can connect whatever source you like, e.g. Apple TV, Android devices, etc.
The product comes with a pre-installed Amazon Fire TV, as part of the delivery scope. Just connect to your WiFi and get started.
SOUND
INVISIBLE LOUDSPEAKERS
The device is equipped with the most efficient and vibrant sound system for mirror surfaces. The speaker system is tailored for behind-glass installation and therefore completely invisible. Via the existing Audio inputs and outputs, you are free to connect other sources and speakers if needed.
CONTROL
IN-MIRROR TOUCH CONTROL
The easy to use Touch Control is seamlessly integrated into the mirror. Change the settings of your mirror at the touch of your fingers - no need to look for a light switch or a remote, simply direct your touch to the elegant touch keys on your mirror and enjoy the rare and elegant combination of style and comfort.
Several preset light levels that match your common lighting needs are available, such as
· 100 % Bright lighting to help you with Tasks
· 60 % Standard lighting to illuminate your room
· 20 % Soft lighting for a relaxing atmosphere
APPS

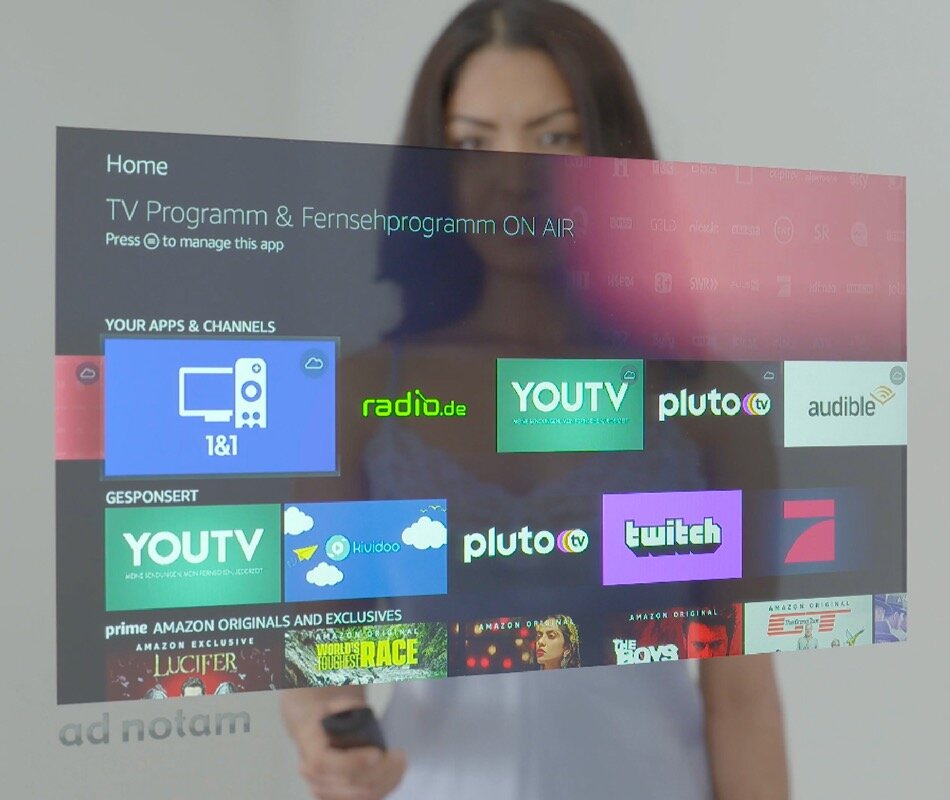

PRE-INSTALLED AMAZON FIRE TV WITH ALEXA VOICE REMOTE.
With the Amazon Fire TV you are ready to stream within minutes. Press the voice button on the Alexa Voice Remote and ask for your favorite TV Show, movie, live news or sporting event. An Amazon account is needed to operate the Fire TV.
Listen to music and podcasts through your favorite streaming services like Amazon Music, Spotify or Tune ln. Additional cost may apply.
Even Better with Prime.
Prime membership unlocks a world of entertainment on Prime Video, with exclusive and award-winning Amazon Originals, popular movies and TV, live events, sports, and more.
Home smart home.
Ask Alexa to view live camera feeds or control lights, thermostats, and other compatible smart home devices with your Alexa Voice Remote. For more information, please visit Amazon`s website.
TASK LIGHTING
LIGHTING COLOR
We give you confidence. With our luxury LED lights you can select the color that best matches the environment you’re preparing for – outdoors, indoors, or evening - in a range between 2700K to 6500K.
TASK LIGHTING
REAL COLORS
Light sources with a high CRI are desirable in color-critical applications such as your make up for a perfect look. We offer the highest possible industry standard for LEDs with a CRI value of more than 90.
TASK LIGHTING
LUMINANCE
We offer the densest LED bulbs count per meter, resulting in the highest quality and brightest possible lighting to fulfill your tasks. And best of all: dim the illuminance according to your wishes with a fingertip via the touch keys inside the mirror .ad notam only uses LEDs that have an effective lifespan of at least 50,000 hours.
MIRROR DEFOGGER
ALWAYS A CLEAR VIEW
The integrated mirror defogger prevents the mirror surface from steam condensation in wet environments, providing a fogless mirror with clear vision at all times.
If not needed, the mirror defogger can be switched off in order to save energy.
TASK LIGHTING
SERVICEABLE AND REPLACABLE LED BARS
For us at ad notam, the longevity of the products is important. For most LED products, the bulbs cannot be replaced. With our unique lighting design we offer the possibility to replace the bulbs, so that your investment pays off for many years.
TASK LIGHTING
DIRECT ILLUMINATION
Forget shadows and insufficient light on the lower face and neck; ad notam direct illumination places sufficient lights on the hairs, face and neck for an optimal make up. With our direct illumination technology you get the brightest possible lighting for your mirror. Change the settings of your mirror at the touch of your fingers - no need to look for a light switch or a remote, simply less power consumption for a defined Lumen Output.
*
The prices are non-binding recommendations from the manufacturer, excluding VAT. Subject to changes and errors.
Technical details
Materials
Crystal mirror combined with anodized aluminium
Lighting pattern as stripes, integrated display with Amazon Fire TV
Dimensions
Different sizes available
Width (W) in mm 800 | 1000 | 1.200 | 1.400 | 1.600
Height (H) in mm 800 | 900
Depth (D) in mm 42
Product Usage: For In-Door Use only
Operating Temperature: 5° to 40° Celcius
Humidity: 20 % - 80 %
HS Code: 85 28 59 31
Storage Temperature: -10° to 60° Celcius
Packaging type: Carton Box
Packaging dimensions:
W (Product Width + 120) x H 1020 x D 150 mm
Weight (800)
in kg for the basic model without upgrades
W 800 | H 800: 12kg
W 1000 | H 800: 14kg
W 1200 | H 800: 16kg
W 1400 | H 800: 18kg
W 1600 | H 800: 20kg
Weight (900)
in kg for the basic model without upgrades
W 800 | H 900: 13kg
W 1000 | H 900: 15kg
W 1200 | H 900: 17kg
W 1400 | H 900: 19kg
W 1600 | H 900: 21kg
Certification
UL 60950-1, CAN / CSA 22.2 - 60950-1, CB, FCC,
EN-60950-1, EMC 55022, EN 6100-3-2, CE, IPX2
Crystal Mirror Standard
Thickness: 4 mm
Surface: Float
Tint: Neutral
Reflection: 95 % +/- 5
Transmission of display image area: 90% +/- 5
Reflection of display image area: 8% +/- 5
Display area, when switched off: Visible
Silver Magic Mirror Upgrade
Thickness: 5 mm
Surface: Float
Tint: Silver
Reflection: 60 % +/- 5
Transmission of display image area: 40% +/- 5
Reflection of display image area: 60% +/- 5
Display area, when switched off: Invisible
| Mounting: | On Glass (MGS) |
|---|---|
| Display type: | TFT Thin Film Transistor |
| Backlight / Lifetime: | LED / 15.000 Hours |
| Screen Diagonale: | 338 mm (13.3'') |
| Picture Format: | 16:9 |
| Physical Resolution: | 1920 x 1080 |
| Viewing Angle: | Horizontal: Horizontal: Typical (Total) 178° (Left: 89° / Right: 89°) Vertical: Typical (Total) 178° (Up: 89° / Down: 89°) |
| Brightness: | 650cd/m² |
| Contrast: | Typical: 1000:1 |
| Response Time: | 25ms |
| Refresh Rate: | 60 Hz |
| OSD Language: | Deutsch, English, Español, Français, Italiano, Português, Chinese |
| Power: | Voltage: DC 12V | Standby: 0.3W, 0.03A | Default: 12.9W, 1.08A | Maximum: 31W, 2.58A |
Component: 3x RCA terminal, green (Y), blue (Pb), red (Pr)
HDMI 1.3: 3x HDMI terminal
Supported resolutions: 720p, 1080i, 1080p
Supported resolutions: 480i, 480p, 576i, 576p, 720i, 720p, 1080i, 1080p
Audio Inputs
Line Audio Input: 2x RCA terminal, white (L), red (R)
Other Inputs
USB: 1x USB terminal
RS 232: 1x D-SUB 9 pin male terminal
IR Input (Infrared): 1x Mini Jack 3.5 mm
Audio Outputs
Speaker Output:
1x Phoenix Clip 4pin
2x 8W RMS @ 8 Ohms per channel
Line Audio Output: 1x Mini Jack 3.5 mm
IR Output (Cable): 1x Mini Jack 3.5 mm
IR Output (LED): 1x Mini Jack 2.5 mm
DC Output 5V/12V: 1x Mini Jack 3.5 mm
max. 2.0A / only one active voltage
USB Media Player
Audio:
Picture:
Video:
Document
MP3, AAC, M4A, MP2
JPEG
MPEG-4, H.264, AVI, MP4, MOV, DIVX
DOC, PPT
Amazon Fire TV
via HDMI Stick
Full HD Quad-core 1,3 GHz
Remote Control with Alexa voice commands
Type: Invisible surface speaker, Stereo
Rated power: each 30W, max. power 60W
Impedance: 8 Ohm
Sensitivity: 85 dB
Frequency Response: 60 - 20000 Hz
Type: LED, direct - double layer 240 LED/m
Luminance: Please refer to the following table, values in lumen +/- 5%
| Models With: | Mirror Width (mm) | ||||
|---|---|---|---|---|---|
| 1-sided lighting | 800 | 1000 | 1200 | 1400 | 1600 |
| 1340 | 1680 | 2020 | 2350 | 2690 | |
| Models With: | Mirror Width (mm) | ||||
|---|---|---|---|---|---|
| 4-sided lighting | 800 | 1000 | 1200 | 1400 | 1600 |
| 5710 | 6380 | 7060 | 7730 | 8400 | |
Color: 2700 K - 6000 K, changeable (progressive)
Viewing Angle: 120°
Color Rendering Index (CRI): 90+
Dimmer: yes, 5 steps
Power: Please refer to the below table
| Models With: | Mirror Width (mm) | ||||
|---|---|---|---|---|---|
| 1-sided lighting | 800 | 1000 | 1200 | 1400 | 1600 |
| Voltage: DC 24V / Default: 46W, 1.92A |
Voltage: DC 24V / Default: 50W, 2.08A |
Voltage: DC 24V / Default: 53W, 2.21A |
Voltage: DC 24V / Default: 57W, 2.38A |
Voltage: DC 24V / Default: 61W, 2.54A |
|
| Models With: | 1-sided lighting |
|---|---|
| Mirror Width (mm) | |
| 800 | Voltage: DC 24V / Default: 46W, 1.92A |
| 1000 | Voltage: DC 24V / Default: 50W, 2.08A |
| 1200 | Voltage: DC 24V / Default: 53W, 2.21A |
| 1400 | Voltage: DC 24V / Default: 57W, 2.38A |
| 1600 | Voltage: DC 24V / Default: 61W, 2.54A |
| Models With: | Mirror Width (mm) | ||||
|---|---|---|---|---|---|
| 4-sided lighting | 800 | 1000 | 1200 | 1400 | 1600 |
| Voltage: DC 24V / Default: 64W, 2.67A |
Voltage: DC 24V / Default: 72W, 3.00A |
Voltage: DC 24V / Default: 80W, 3.33A |
Voltage: DC 24V / Default: 88W, 3.67A |
Voltage: DC 24V / Default: 94W, 3.92A |
|
| Models With: | 4-sided lighting |
|---|---|
| Mirror Width (mm) | |
| 800 | Voltage: DC 24V / Default: 64W, 2.67A |
| 1000 | Voltage: DC 24V / Default: 72W, 3.00A |
| 1200 | Voltage: DC 24V / Default: 80W, 3.33A |
| 1400 | Voltage: DC 24V / Default: 88W, 3.67A |
| 1600 | Voltage: DC 24V / Default: 94W, 3.92A |
Technology: Capacitive
Number of Keys: 2
Functions
Key 1:
Short Press: Dim Lighting Intensity, 5-Levels
Long Press: Setting Light Temperature in a range from 2700K to 6000K
Key 2:
Mirror Defogger ON/ OFF
Voltage: AC 220V
Power: Please refer to the below table
Mirror Width (mm)
| 800 | 1000 | 1200 | 1400 | 1600 |
| Default: 14W, 0.07A | Default: 14W, 0.07A | Default: 14W, 0.07A | Default: 42W, 0.2A | Default: 42W, 0.2A |
